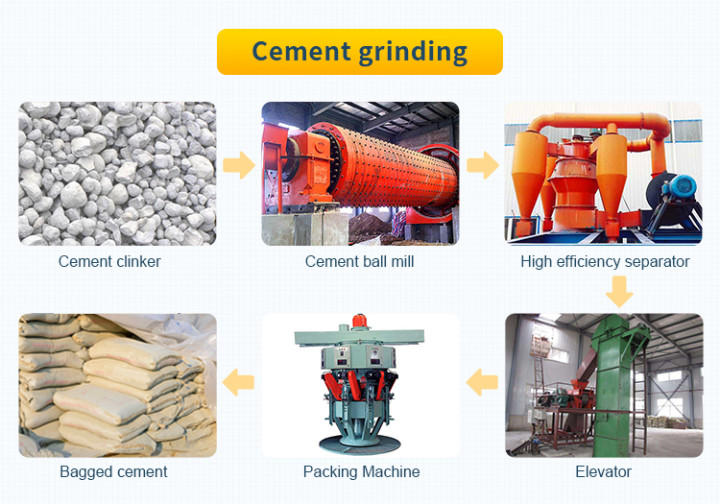

Cement grinding station is an individual independent cement finished products production units of the formation of finally finished stage of cement production line. This phase will add the cement clinker with proper amount of mixed materials to be grinded for cement finished product
Main Equipment: Cement grinding station is composed of storage bins, belt scales, cement mills, powder separators, bucket elevators, packaging scales, dust collectors, belt conveyor, spiral conveyor, etc.
Applied Materials: Stone powder, limestone, bauxite, aluminum hydroxide, cement clinker, slag, fly ash, coal gangue and other industrial waste residues, etc.
Silicate cement production technology is representative in the cement production, is a limestone and clay as the main raw material, through crushing, ingredients, which takes limestone and clay as the main raw materials, through crushing, burdening, grinding to fine particles to get the raw meal, then feeds into the cement kiln to calcination to get the cement clinker, mix some gypsum into the clinker(sometime with mixed materials and admixture) to grind Portland cement.

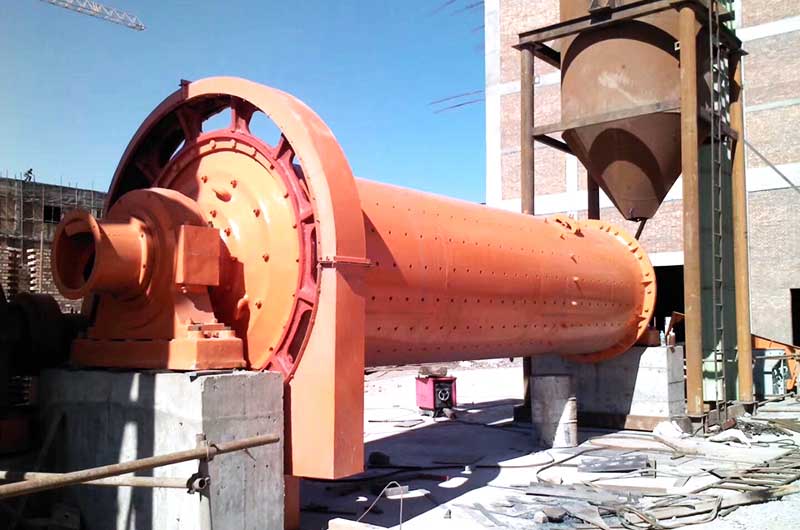

1. Grinding Mill: Cement Ball mill,
2. Feeding Machines: Apron Feeder, Impeller Feeding machine, Magnetic Vibrating Feeding Machine, ect.
3. Conveying Equipments: Bucket Elevator, Belt Conveyor, Chain Conveyor, ect.
4. Crushers: Jaw Crusher, Hammer Crusher, Impact Crusher ect.
5. Dust Collectors / Dust Filters: Bag type Dust Collector / dusct filter, Pulse bag Dust Collector, Air box type pulse bag dusct collector, ect .
6. High effecient powder separator: High Efficient Horizontal whirling-fluid Powder Separator, Centrifugal powder separator/ concentrator, cyclone powder concentrator, ect.
7. Packing Machines: Automatic Cement Packing Machine, 1-12 spouts cement bag rotary packing machine, ect.
1. Procedure: The mud grinding station only has a cement mill system and packaging sales; while the cement plant includes a full set of production lines such as mining, raw material grinding, clinker making, cement grinding, packaging and sales.
2. The nature of the factory: The cement grinding station is a cement product production unit that separates the final product stage of cement production; the cement plant includes the complete cement production process.
3. Processing characteristics: During the processing stage of the cement grinding station, the cement clinker is added to the appropriate amount of mixed materials for powdering to produce finished cement; the production of cement plants generally can be divided into three processes: raw meal preparation, clinker calcination and cement production.

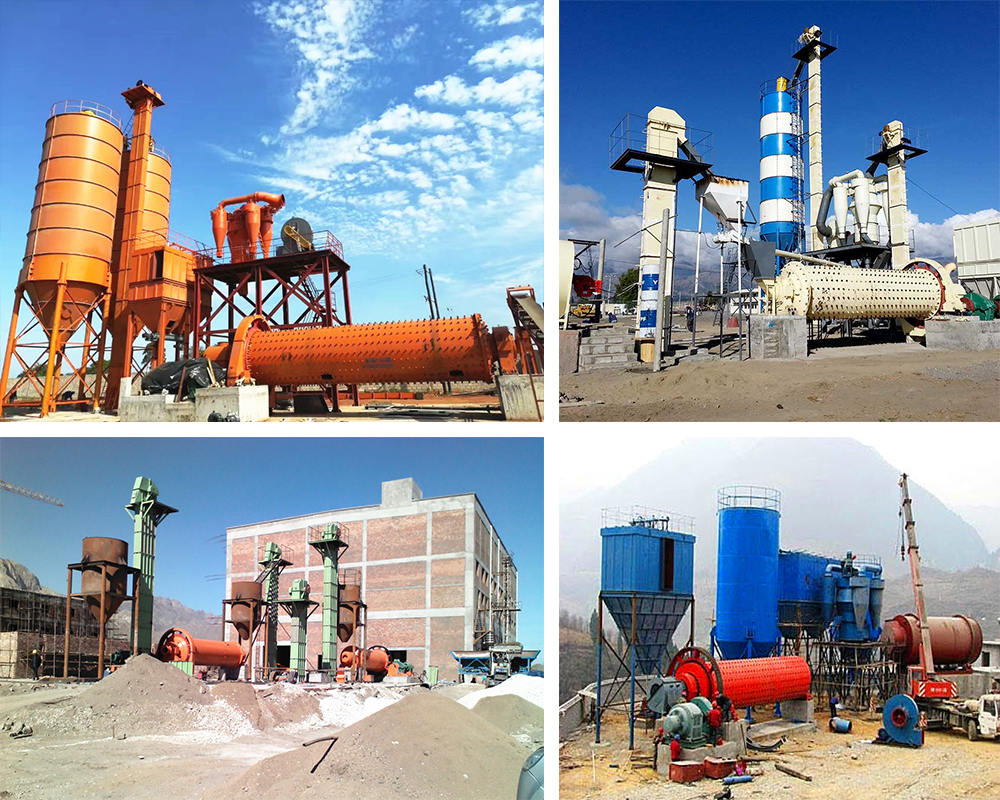

Customer Site of Fote Cement Grinding Station
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
| Product specification (m) |
Milling form | Transmission form | Gear box | Motor power (kw) |
Production capacity (t/h) |
Total weight (t) |
|
| Model | Speed reduction ratio | ||||||
| Φ1.83×7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ2.2×7.5 | Open flow | Brim | ZD70 | 5 | 380 | 8-10 | 64.8 |
| Φ2.2×11 | Open flow | Brim | D110 | 35.5 | 630 | 12-13 | 104.6 |
| Φ2.2×13 | Open flow | Brim | D110 | 35.5 | 630 | 16-18 | 114 |
| Φ2.4×13 | Open flow | Brim | D110 | 35.5 | 800 | 20-23 | 130.6 |
| Φ2.6×13 | Open flow | Brim | MFY100 | 19.5 | 1000 | 28-32 | 158 |
| Φ3×9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 167 |
| Φ3×11 | Circle flow | Brim | D140 | 42.8 | 1250 | 36-47 | 180 |
| Φ3.2×13 | Open flow | Brim | D140 | 36.5 | 1600 | 45-50 | 225 |
| Φ3.5×13 | Circle flow | Brim | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
| Φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
| Φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
| Φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
| Product specification (m) |
Milling form | Production capacity (t/h) |
| Φ1.83×7 | Open flow | 6.5-8 |
| Φ2.2×7.5 | Open flow | 8-10 |
| Φ2.2×11 | Open flow | 12-13 |
| Φ2.2×13 | Open flow | 16-18 |
| Φ2.4×13 | Open flow | 20-23 |
| Φ2.6×13 | Open flow | 28-32 |
| Φ3×9 | Circle flow | 28-36.5 |
| Φ3×11 | Circle flow | 36-47 |
| Φ3.2×13 | Open flow | 45-50 |
| Φ3.5×13 | Circle flow | 60-65 |
| Φ3.8×13 | Open flow | 60-62 |
| Φ4.2×13 | Open flow | 85-87 |
| Φ4.6×14 | Circle flow | 120-135 |
FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
