Feeding thickness: 15–30%
Motor power: 1.1kw
Shaking table separation is the most widely used and the most effective separation equipment in the gravity concentrator. As an independent beneficiation method to use, gold shaking table also can be combined with other beneficiation methods such as flotation and magnetic separation or other beneficiation equipment such as centrifugal separator, spiral concentrator, belt chute, etc.

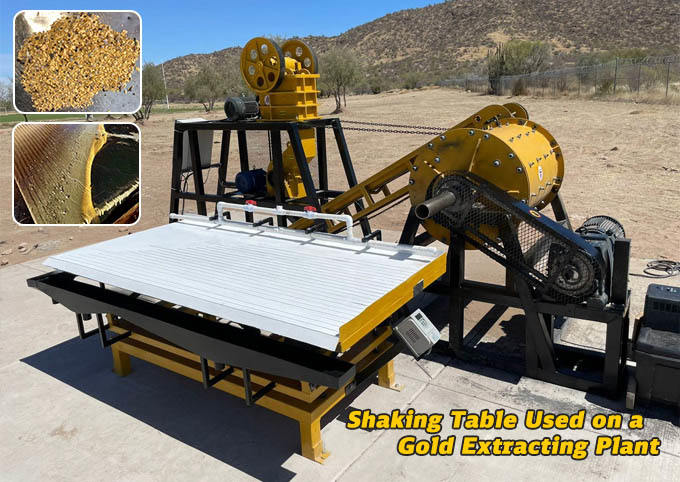

Nowadays gold shaking table has been widely used in the beneficiation of rare metals and precious metal ores, such as tungsten, tin, quintal and ingot-shaped tablet, moreover, gold concentrator table is also available for iron and manganese ore and the beneficiation of nonferrous metals before flotation separation. According to some statistics, about 30%-80% ore concentrate is screened by shaking table. The feed particle size of tungsten and tin is 2-0.037mm and the minimum feed particle size of sludge shaking table is 0.019mm. In the production practice, combined with other equipment, the shaking table for gold is used in the recycling of fine mineral with 37 micrometers.
1. The maximum beneficiation concentration ratio can attain more than 300 times;
2. Final concentrate and discarded tailing can be obtained through one time separation;
3. Multiple products can be gained at one time according to your needs;
4. Obvious mineral zoning in the table surface contributes to the convenient adjustment, observation and receive.
We provide you with different shaking table solutions to save your costs according to your materials size and capacity. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
You are welcome to inquireby chatting with online service or leave your whatsapp/ email on our website. We will contact you within 24hours after receiving your inquiry.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.

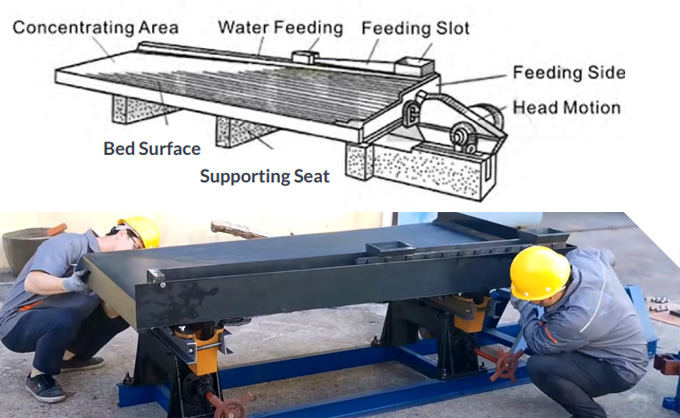

| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
| Name | Max.feeding size（mm） |
Bed surface Water quantity （t/d） |
| Grit concentrator table |
2 | 80-150 |
| Fine sand concentrator table |
0.5 | 30-60 |
| Sludge concentrator table |
0.15 | 10-17 |

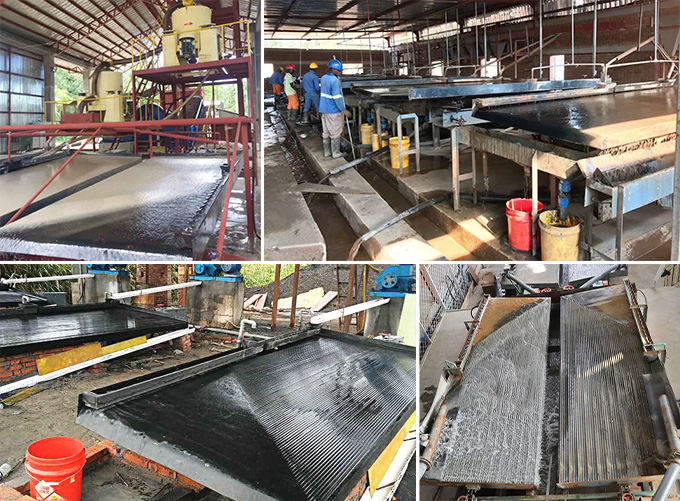

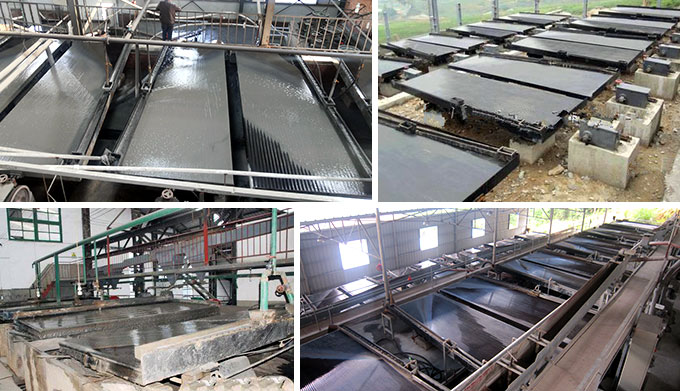

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
