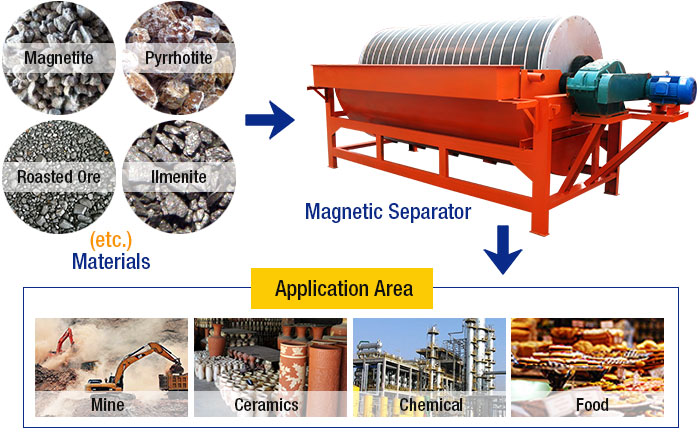

Applied material: magnetite, pyrrhotite, calcined ore, ilmenite, etc

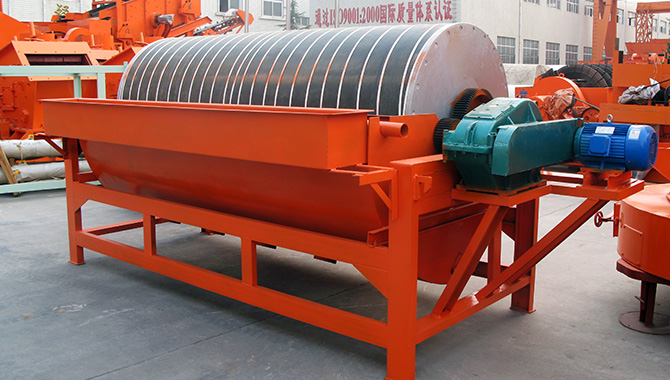

Magnetic separator is the professional refinement and iron removal equipment that can be used in the magnetic iron ore the dressing process such as magnetite, hematite, magnetic pyrite and limonite and non-metallic materials iron removal working including coal, quartz and gypsum.
The magnetic system of high intensity wet magnetic separation machine is composite of high quality ferrite material and thulium magnet and the average magnetic induction intensity is 100-600Mt. According to the varying customers' needs, Fote machinery can provide you with downstream, semi-reflux, reflux-type and so many different form strong magnetic separation. This product has merits of the simply structure, the big processing capacity, easy operation, easy maintain and so on.
1. Rough concentration of the coarse crushed or secondary crushed lean iron ore, waste stone exclusion work and next procedure loading reduction;
2. Sort and return to burn the not fully restored raw ore in the hematite closed-circuit reduction roasting operations.
3. Remove the mixed iron in the mud to improve the porcelain quality in the porcelain industry.
4. Iron removal working in the burning coal, foundry sand, refractory materials and other industries.
1. Made of the high quality thulium magnet, its magnetic induction intensity reaches 600mT, which contribute to the higher handling capacity and perfect magnetic and iron removal effect;
2. Simple structure design and automatic controlling system saves the maintain time and energy, totally reducing 50000-100000 RMB running costs;
3. Adjusted magnetic field, high efficiency, small floor sites and volume can totally save 50000-100000 RMB base construction investment;
4. Wearable materials of its components increase the compressive resistance and bearing capacity, reducing the replacing times and extending more than 3 times using life;
5. Scientific motor selection reduces the vibration and noise. No energy consumption loss saves 80000 RMB electric charges;
6. Perfect inner structure design can prevent the flying dust and the German high efficiency dust-cleaning apparatus control the pollution among the national environmental standard;
7. Without the working time delay, the equipment delivery work is all among the contract date;
8. From the equipment purchasing to the contract signing, full service is available. With the free transportation, installation, repair and maintain, you do not have the extra concerns.
Fote machinery has a strict production and management procedure, especially showed in its wet magnetic separation process. Welcome to consult the Fote machinery to get the iron ore drum magnetic separator price. We are always sincerely waiting for your purchasing.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
| Model |
Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm) |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
| Model | Feeding size （mm） |
Processing capacity （t/h） |
| CTB6012 | 2-0 | 10-20 |
| CTB6018 | 2-0 | 15-30 |
| CTB7518 | 2-0 | 20-45 |
| CTB9018 | 3-0 | 40-60 |
| CTB9021 | 3-0 | 45-60 |
| CTB9024 | 3-0 | 45-70 |
| CTB1018 | 3-0 | 50-75 |
| CTB1021 | 3-0 | 50-100 |
| CTB1024 | 3-0 | 60-120 |
| CTB1218 | 3-0 | 80-140 |
| CTB1224 | 3-0 | 85-180 |
| CTB1230 | 3-0 | 100-180 |
| CTB1530 | 3-0 | 170-280 |

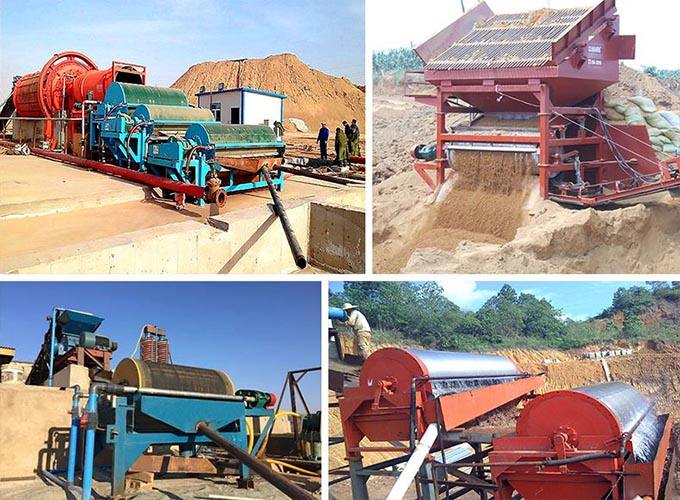

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
Whatever your requirements, you 'll find the perfect service-oriented solution to match your specific needs with our help.
