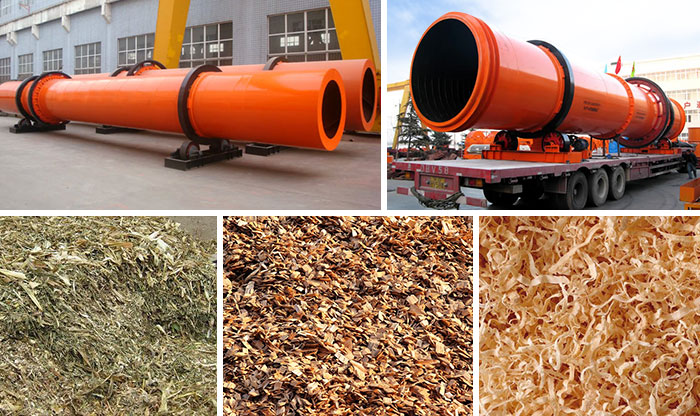

Applied material: corn stalks, soybean straw, cotton stalks, wheat straw, sorghum stalks dry, sawdust, wood shavings, leaves, mulberry leaves.

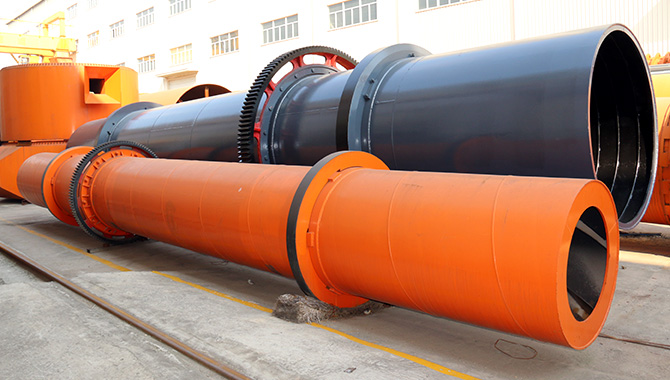

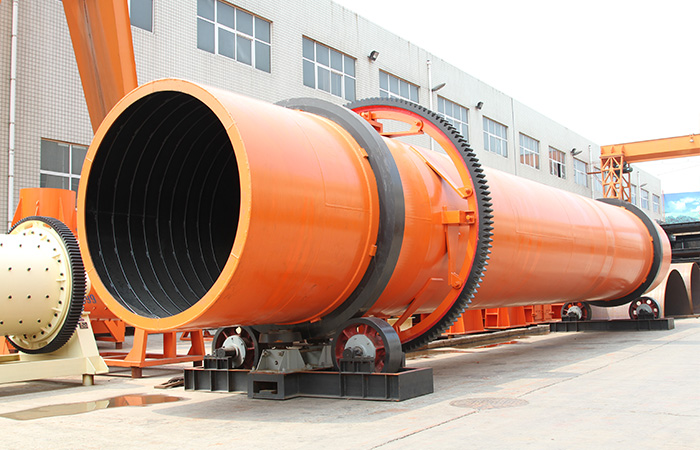

Sawdust dryer is suitable for powder granulated wet sawdust materials process. Materials are sent to sawdust dryer inner tube through screw conveyer. Then through fully touching with high temperature gas flow, the moisture in the wet sawdust will be evaporated and the powder granulated finished products will be gained.
Fote machinery has wood sawdust drying machine for sale. According to the property of powdery material such as sawdust and wood flour, Fote machinery develops a new type sawdust drying equipment with high efficiency and energy consumption. The new type heat conduction pipe structure largely increases the heat area and improves the material drying efficiency. With advantages of proper structure, perfect craft, affordable sawdust drying equipment price, high production capacity, convenient running, strong materials adaptation, and reliable operation, the sawdust drying equipment is strongly favored and widely used by our customers.
1. Automatic control system can guarantee uniform and stable moisture of the dying sawdust.
2. Automatic stone and iron removal system guarantee no impurity of the drying sawdust in the following flow.
3. There is one-sixth investment cost of the foreign introducing equipment.
4. The tail rotation of the sawdust dryer can guarantee the stable and reliable running, completely changing the slipping phenomenon of the riding wheel rotation.
5. Combined distribution of multi orientation lifter blade contributes to the effective drying time adjustment and better drying effect.
6. The moisture content index can be easily adjusted according to the customers' needs.
7. Frequency conversion can effectively control the material flow.
8. With the outlet temperature, the dust-cleaning apparatus has a long service time and continuous production is able.
9. Equipped with new type of energy saving hot-blast stove, it has advantages of high efficiency, energy conservation and controllable heat. There is about 60% coal consumption.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
Item/Unit/Model
Φ2.5×7m
Φ2.7×7m
Φ3.0×7.0m
Φ3.2×7.0m
Φ3.6×8m
Diameter of outer cylinder(m)
2.5
2.7
3.0
3.2
3.6
Length of outer cylinder(m)
7
7
7.0
7.0
8
Cylinder volume( m³ )
16.63
16.63
52.678
52.678
81.38
Rotating speed of cylinder(rpm)
4-10
4-10
4 -10
4 -10
4 -10
Initial moisture of slag(%)
10-12
10-12
10-12
10-12
10-12
Final moisture of slag(%)
1
1
1
1
1
Initial moisture of yellow ground(%)
8-10
8-10
8-10
8-10
8-10
Final moisture of yellow ground (%)
0.5-1
0.5-1
0.5-1
0.5-1
0.5-1
Highest intake air temperature(℃)
700-750℃
700-750℃
700-750℃
700-750℃
700-750℃
Production capacity(T/h)
Yellow sand25-30
Slag20-25Yellow sand30-35
Slag25-30Yellow sand35-40
Slag30-35Yellow sand45-50
Slag35-40Yellow sand65-70
Slag60-65
Motor type
Y2-132m-4E
Y2-132m-4E
Y2-160m-4
Y2-160m-4
Y2-160m-4
Motor power(kw)
7.5×2
11×2
7.5×4
7.5×4
15×4
Reducer type
XWD7-23-11W
XWD7-23-11W
XWD6-23-7.5KW
XWD6-23-7.5KW
XWD8-23-15KW
Velocity ratio of reducer
29
29
29
29
29
Item/Unit/Model
Cylinder volume( m³ )
Production capacity(T/h)
Φ2.5×7m
16.63
Yellow sand25-30
Slag20-25
Φ2.7×7m
16.63
Yellow sand30-35
Slag25-30
Φ3.0×7.0m
52.678
Yellow sand35-40
Slag30-35
Φ3.2×7.0m
52.678
Yellow sand45-50
Slag35-40
Φ3.6×8m
81.38
Yellow sand65-70
Slag60-65
