Application area: processing and utilization of construction sand

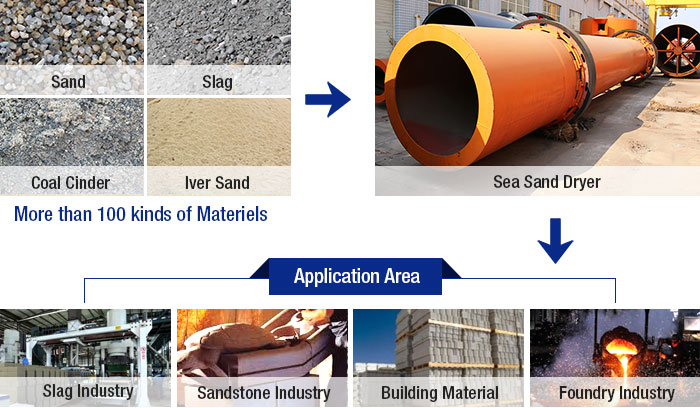

Sea sand is a kind of marine mineral which belongs to natural sand without artificial operation. With high industrial use value and low mining costs, sea sand mainly applies for the processing and utilization of construction sand. Because of its large water content, it is necessary to make a drying operation before use. Sea sand dryer of Fote Machinery has unique strengths of affordable price, high drying efficiency and reliable sale service.
With the large manufacture scale and long time producing experience, Fote Machinery uses the production models of producing and selling by itself. Fote Machinery has its own research and development production base. Without the middlemen earning difference price, equipment is all completed independently by the manufacturer from production to sales. Direct selling property guarantees its affordable price.
Purchasing email: info@sinoftm.com
a. Production Power
With large manufacture scale and strong production power, Fote Machinery has good reputation around the world. What's more, for more than 30 years production experience, Fote Machinery owns obvious advantages of production scale, technology or capital reserves. Strong technical and financial support ensures its international sales on more than 100 countries.
b. After-Sales Service
Fote Machinery has formed a professional and experienced after-sales service team that is responsible for the equipment purchase, equipment transport, installation and maintenance. Our free after sale service provides convenience for customers' purchase and use experience.

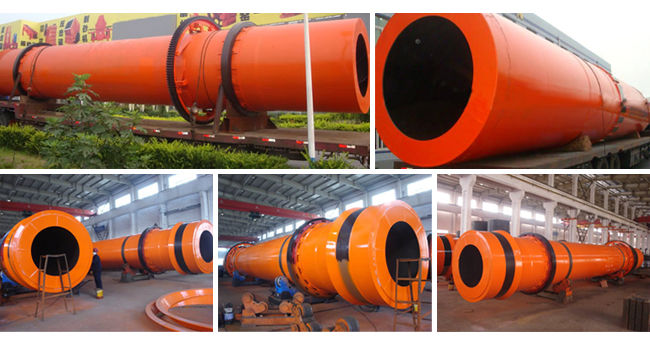

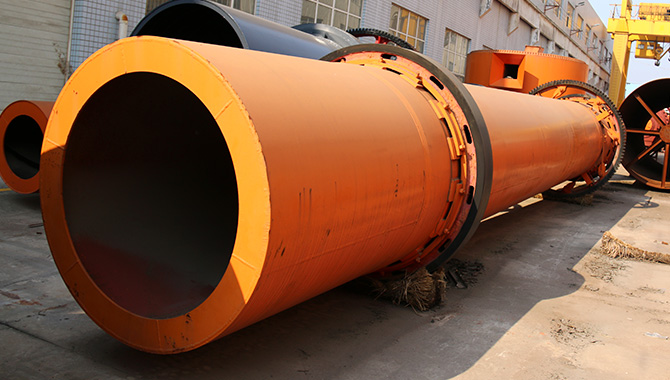

1. Sea sand drying machine of Fote Machinery is the research result combining the most advanced drying process at home and abroad and the advantages of the traditional dryer.
2. Sea sand dryer of Fote Machinery has large cylinder volume, material handling capacity and drying production capacity.
3. Made of high-end special materials of its cylinder and components, sea sand dryer of Fote Machinery whose high temperature resistance and wear resistance are far superior to similar drying equipment on the market enjoys reliable quality, low maintenance rate and longer service life.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity (%) |
Highest Inlet
Air Temperature (℃) |
Main Motor
(kw) |
Weight
(t) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell Length (m) |
Shell cubage (m³) |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature (℃) |
Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
