Iron Ore Beneficiation Plant

Iron ore processing plant is used for iron removal, iron extraction, iron upgrade process, such as magnetic iron ore extraction from magnetite, hematite, magnetic pyrite and limonite and non-metallic materials iron removal working including coal, silica sand, quartz and gypsum.

Magnetic separation is one of the main methods for iron ore separation. The iron ore beneficiation plant is mainly used for crushing, grinding, separating, upgrading iron ores to 90% and geting ore concentraction in ore dressing industry.

Hot sale capacity for small miner, such as 1 tph, 3 tph 5 ton per hour; for large mining company, such as 30tph, 50 ton per hour, 100 tph etc.

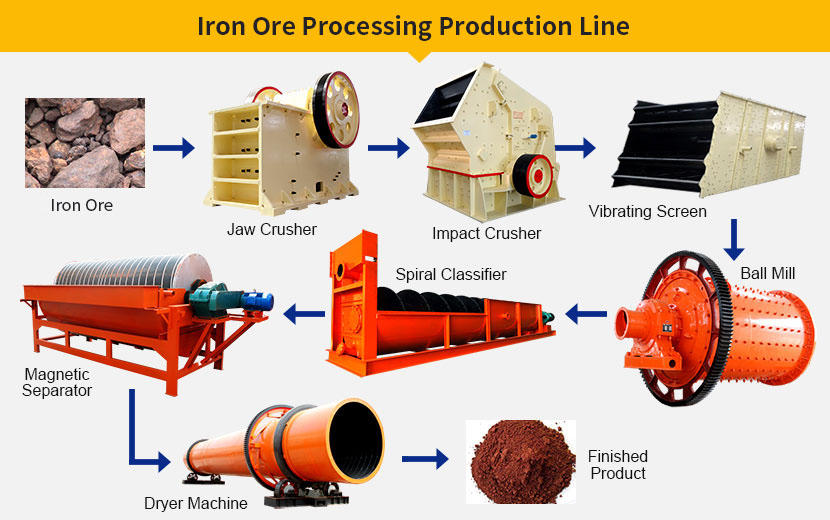

Iron Ore Processing Plant Flow

Main equipment of iron ore processing plant includes oron ore crusher, vibrating screen, ball mill, spiral classifier, magnetic separator, thickener, dryer, etc.

1. Mineral is crushed by jaw crusher to crush the ore into a reasonable fineness; after that the material will be sent to silos by the elevator.

2. The materials are evenly by feeder into the ball mill for the grinding process to 80-500 mesh.

3. The ores after fine grinding will enter into the spiral classifier to wash and classify the ore mixture.

4. After classifying, the ore will go to the magnetic separate for upgrading and separating.

5. The fine materials after being sorted by the thickener can get dry minerals after drying.

Iron Ore Beneficiation Equipment

Iron ore beneficiation equipment consists of crushing equipment, grinding machine, fine particle screening and grading equipment, magnetic separation equipment and washing equipment.

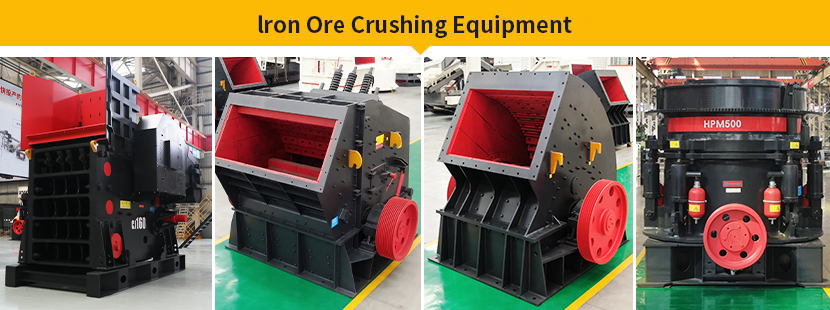

1. Iron Ore Crushing Equipment: jaw crusher, impact crusher, hammer crusher and cone crusher;

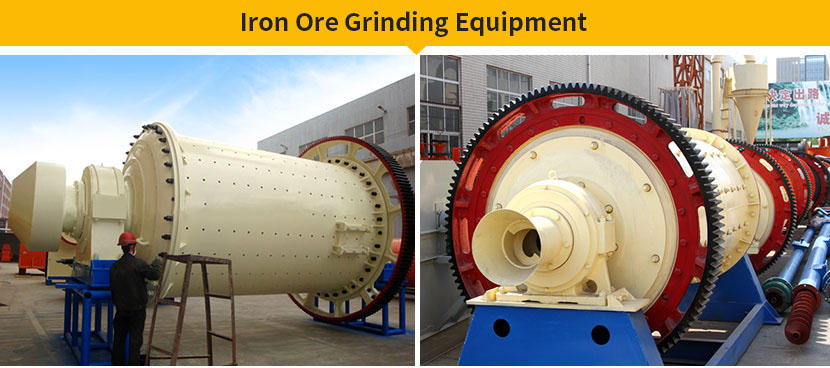

2. Iron Ore Grinding Equipment: dressing ball mill and energy saving ball mill;

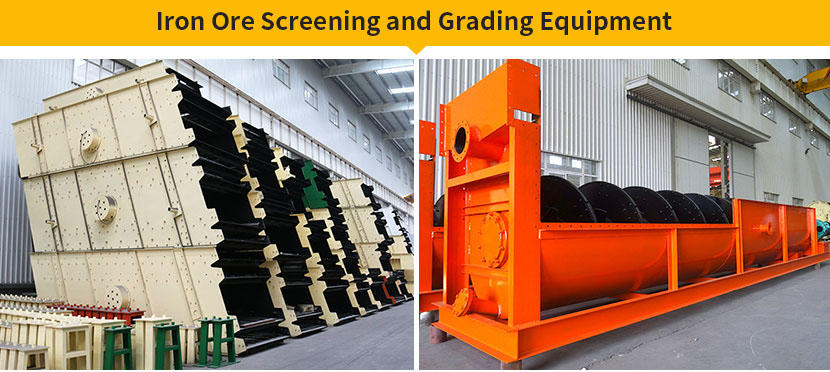

3. iron Ore Screening and Grading Washing Equipment: vibrating screen and spiral classifier;

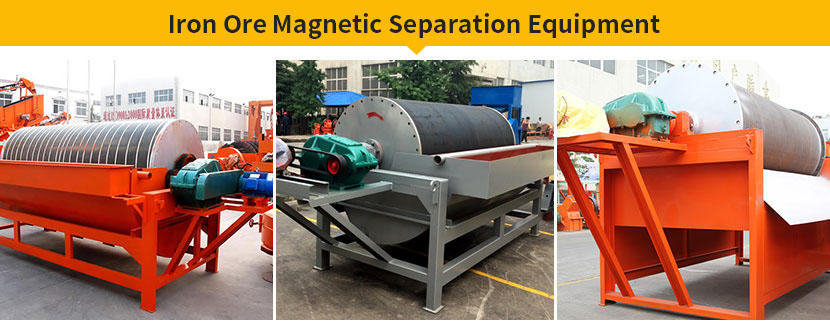

4. Iron Ore Magnetic Separation Equipment: magnetic separator, dry and wet type magnetic separator and high gradient magnetic separator.

Customer Working Site

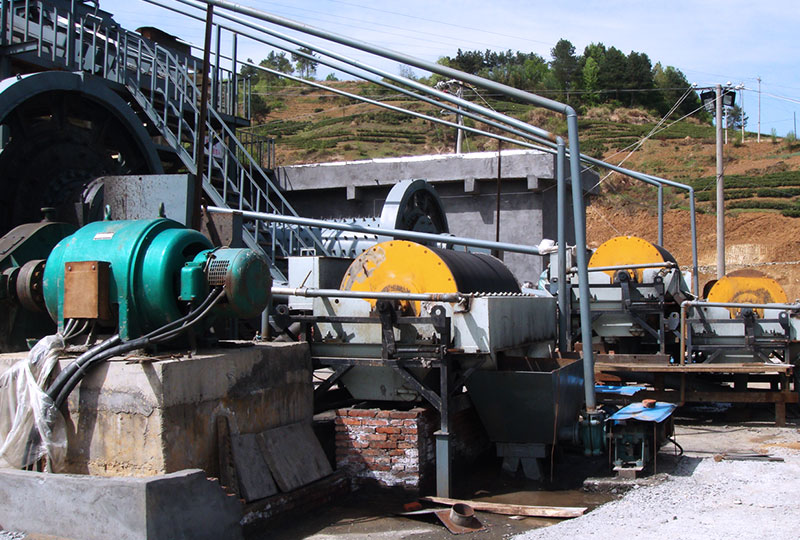

80 Ton Per Hour Iron Ore Processing Plant in Malaysia

Customer Feedback: Our iron process plant has been running for 8 months. We went to China and visited the FTM company on zhengzhou city before purchasing. There are three factories with large scale, which increased our purchasing confidence. Now the level of iron ore concentrates is improved by 75%. We are quite satisfied with this plant.

You are welcome to inquire about the mineral separation line by chatting with online service or leave your whatsapp/ email on our website. We will contact you within 24hours after receiving your inquiry. You can arrange to visit our factory at any time.
